Understanding Separating & Closed Zippers

Understanding Separating & Closed Zippers
You have your fabric, your measurements, and your material choice. But before adding hardware to your cart, there is one critical detail to finalize: the bottom type.

A zipper's "bottom type" simply refers to what happens at the base of the track when it is fully unzipped. Buy the wrong one, and your jacket won't open, or your tote bag will fall apart at the seams.

Here is everything you need to know to decode zipper separation types and choose the exact functionality your project demands.

1. Closed-End Zippers (Fixed Bottom)

If you look at the zipper on a standard pair of jeans or a small coin purse, you are looking at a closed-end zipper.

  • How it works: This zipper features a fixed "bottom stop" (usually a small metal or plastic bar) clamped across the bottom of the teeth. When unzipped all the way, the slider hits this stop, and the two halves of the tape remain firmly attached at the base.

  • Best for: Trousers, jeans, skirts, dresses, handbags, backpacks, and interior garment pockets.

  • The Golden Rule: If the item does not need to completely split open into two separate pieces to be worn or used, you need a closed-end zipper.

2. Separating Zippers (Open-End)

Think of your favorite winter coat or a classic zip-up hoodie. These require a separating zipper.

  • How it works: Instead of a fixed bar at the bottom, one side of the tape ends in a small "pin," and the other side ends in a "retainer box." To close the garment, feed the pin into the box to align the teeth, then pull the slider up. When fully unzipped, the two halves detach completely.

  • Best for: Jackets, coats, hoodies, zip-up cardigans, removable hoods, and marine canvas panels.

  • The Golden Rule: If you need to wrap the garment around your body rather than stepping into it or pulling it over your head, you need a separating zipper.

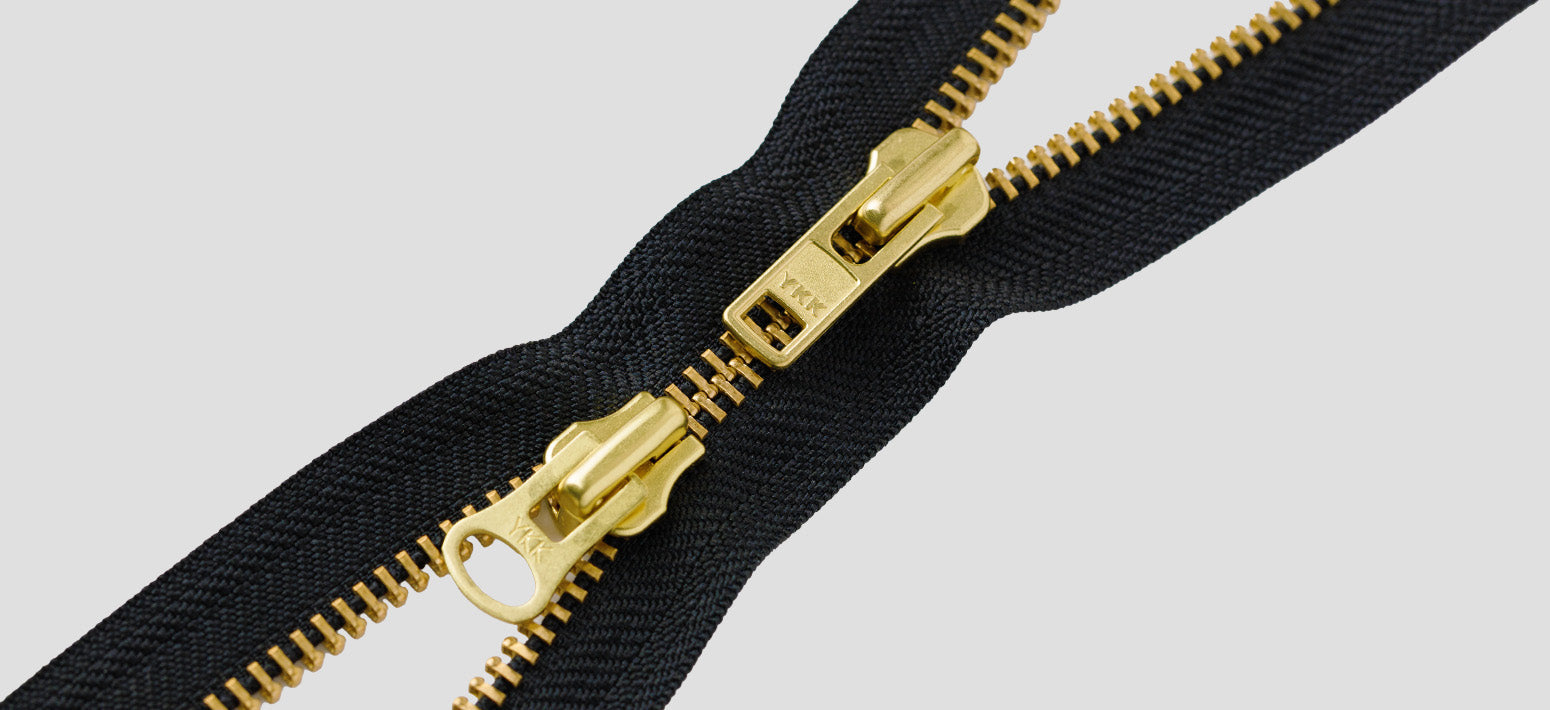

3. Two-Way Separating (Double Slider Open-End)

This is where things get a bit more advanced. A two-way separating zipper is the premier choice for long, heavy-duty garments.

  • How it works: It features the same pin-and-box mechanism as a standard separating zipper, allowing the two sides to completely detach. However, it features two sliders on the track. You can pull the top slider down to open the garment from the neck, or pull the bottom slider up to open it from the hem.

  • Best for: Long winter overcoats, dusters, specialized sportswear, and sleeping bags.

  • The Golden Rule: Choose this when making a garment that falls below the hips. Opening the bottom slider prevents the zipper from tearing when you sit down and provides much-needed walking mobility.

4. Two-Way Head-to-Head (Double Slider Closed-End)

Not to be confused with the two-way separating zipper, this version features two sliders but does not come apart at the bottom.

  • How it works: This track has closed-end stops at both the very top and the very bottom. The two sliders sit face-to-face in the middle of the track. You can pull them apart to open the middle of the zipper, or push them together to close it.

  • Best for: Luggage, backpacks, large duffel bags, and instrument cases.

  • The Golden Rule: If you are building a large bag that needs flexible access from the center of the compartment, this is your hardware.

Ready to Shop by Bottom Type?

Choosing the right bottom type dictates how your final piece will be used every single day. Match your sewing pattern against these types to confidently secure the exact hardware your design requires:
